Introduction

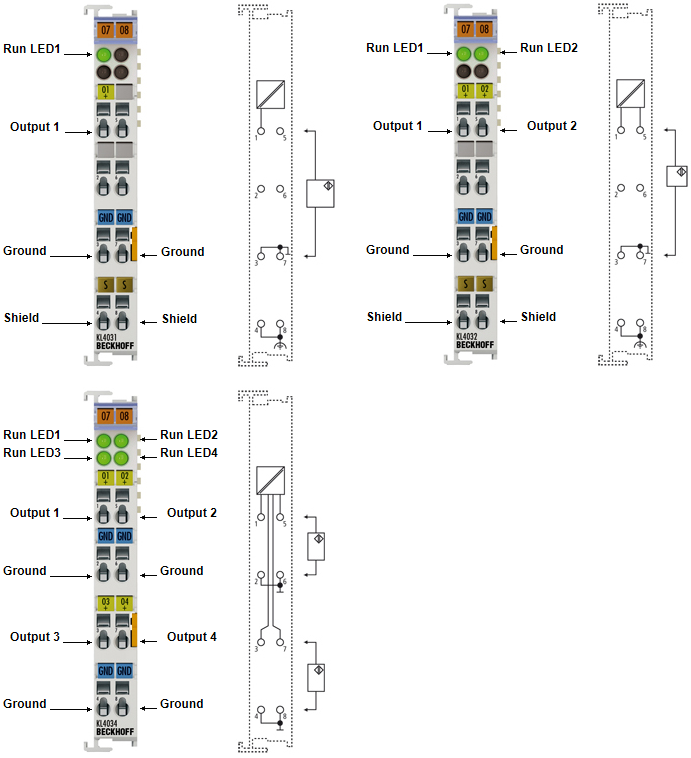

The analog KL403x/KS403x output terminals generate signals in the range -10 V to +10 V. The voltage is supplied to the process level with a resolution of 12 bits and is electrically isolated. The output channels of the Bus Terminals have a common ground potential. Run LEDs indicate the data exchange with the Bus Coupler.
