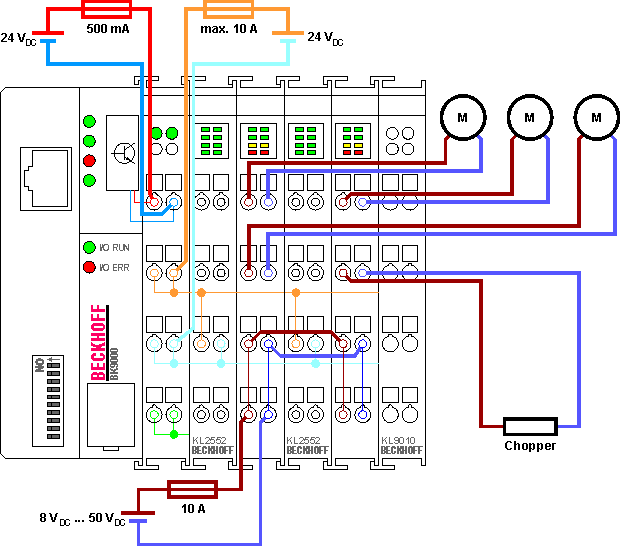

KL2552 - application example
| |
Risk of injury through electric shock and damage to the device! Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals. |
Brake resistor
The brake resistor connected to channel 2 of the second EL7342 uses the brake energy of the motors connected to the other three channels.
Note | |
Dimensioning of the brake resistor The brake resistor should be dimensioned such that it can withstand the expected heat development without damage! |
