Configuration

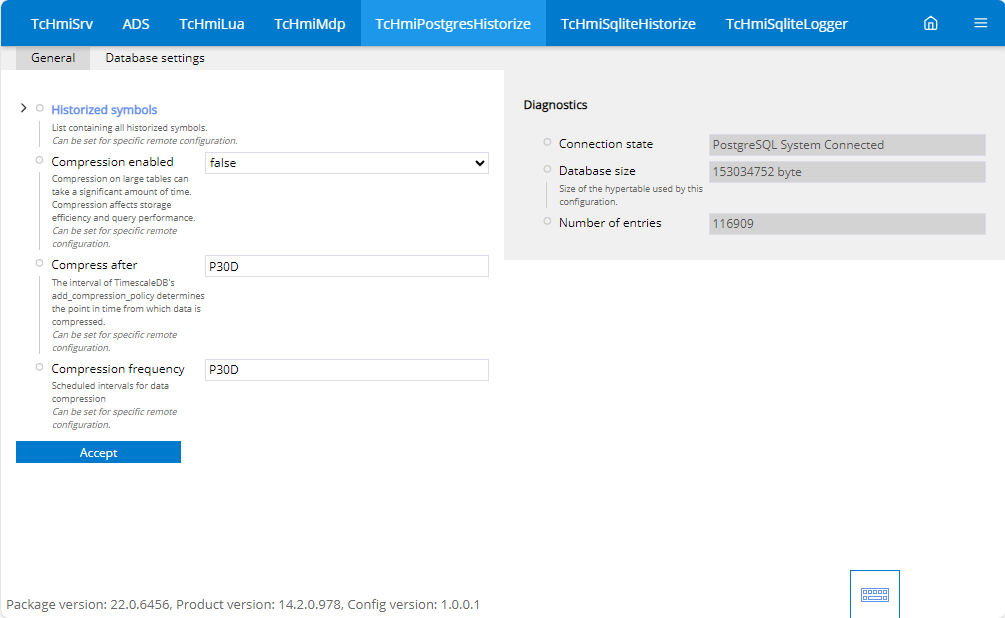

General

The basic settings for the server extension are specified in the General tab.

Historized Symbols

• All configured symbols are displayed here or new ones can be added.

Compression enabled

• Compression reduces the size of the data in the database. Compression increases the access time.

Compress after

• Time from which older data is compressed, if compression is enabled.
  Example: Default P30D = Data older than 30 days is compressed.

Compression frequency

• Specifies the interval at which the older data is compressed if compression is enabled.

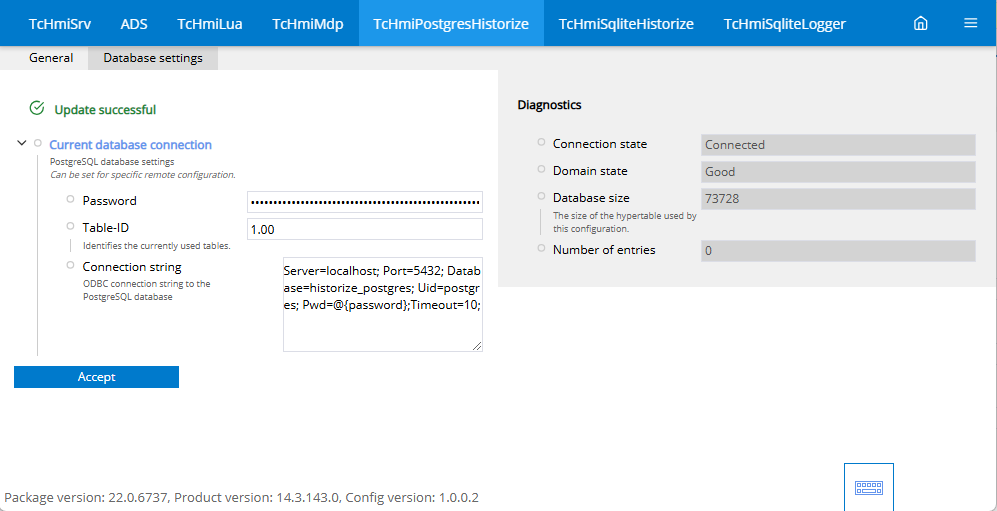

Database settings

All settings relating to the database are made in the Database settings tab.

Current database connection

• Password: Password of the database.
• Table ID: Identifies the tables currently in use. Can be set for special remote configurations.
• Connection: Connection setting to the database via ODBD. Enter the IP, port, database name, UserId, password and timeout here. (@{password} is a placeholder and will be replaced by the password entered above)
