Standard Window

The functional unit Standard Window controls a window-drive (group).

Settings

Standard Window 1:

Parameters

  • Latching Time: Time until the commands given by the sensors/sensor groups (see Sensors / Actuators) are maintained.

Sensors / Actuators

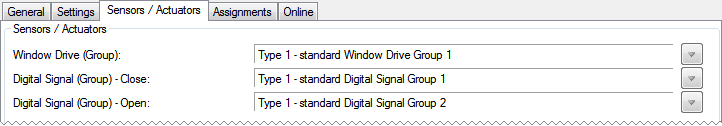

Standard Window 2:

In this menu the Window Drive / Window Drive Group has to be entered together with the Digital Signal / Digital Signal Group with their pushbuttons for opening and shutting.

Online

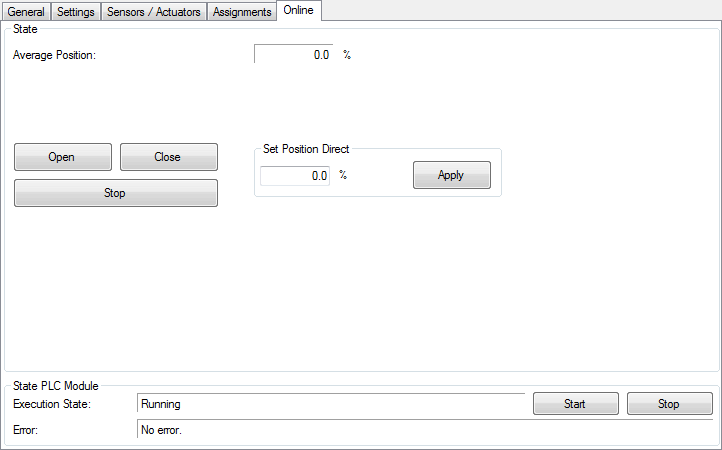

Standard Window 3:

Commands

  • Open: Opens all assigned windows.
  • Close: Closes all assigned windows.
  • Stop: Driving windows will be stopped.
  • Set Position Direct: The entered value will be taken over to the window-drive(s), when the Apply-button is pressed.

State

  • Average Position: Average value of all active (non-erroneous) window drives. 100% means completely opened, 0% completely closed.

State PLC Module

  • Execution State: Shows if the module is running or stopped.
  • Error: In case of an error, the error code and the error parameter are displayed in this box.
  • Start/Stop: Starts/stops the module.
