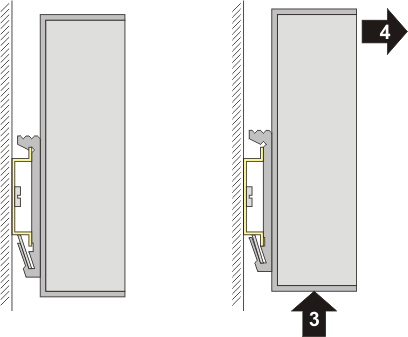

CU1128 - Mounting and removal

The CU1128 EtherCAT hub is fastened to the mounting surface with the aid of a 35 mm mounting rail (according to EN 60715).

Mounting

Fit the mounting rail to the planned assembly location.

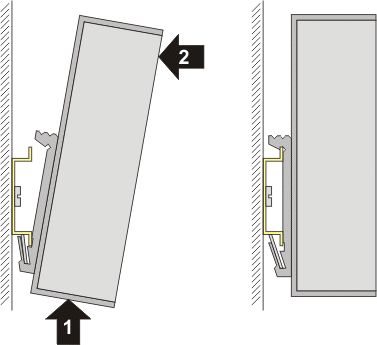

Suspend the device on the mounting rail with the spring on the lower side of its latching flange.
Press the device upwards (1).
Press the upper side of the device (2) against the assembly surface until it latches in the mounting rail.
Attach the cable.
