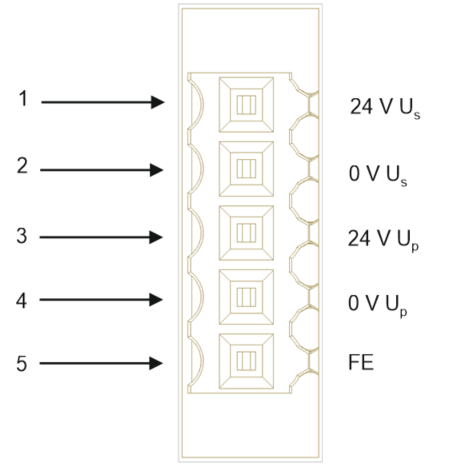

Power Supply Connector - POWER IN
POWER IN Connector
Pin Number | Description |
|---|---|
1 | 24 V US |
2 | 0 V US |
3 | 24 V UP |
4 | 0 V UP |
5 | Functional Earth |
