EL7062 stepper motor terminal

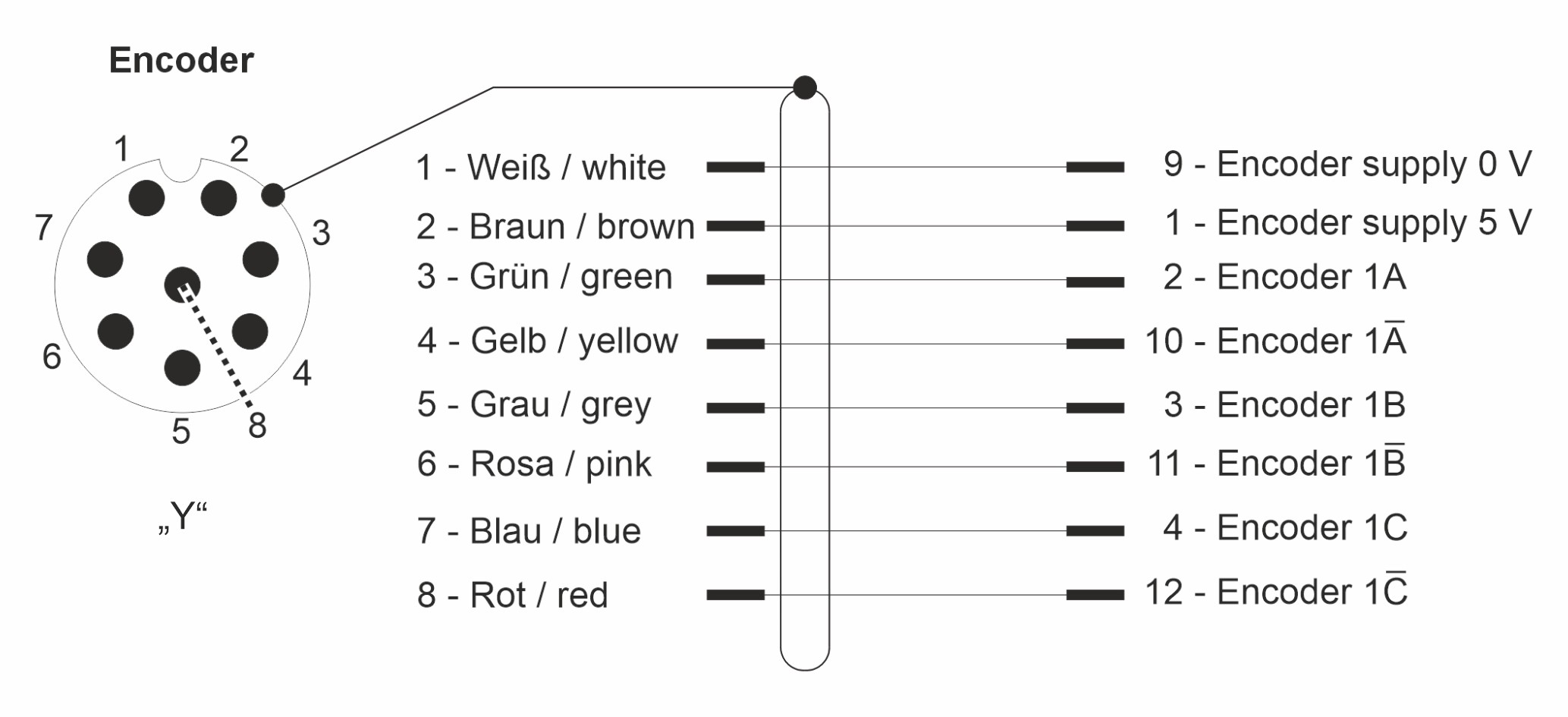

Encoder cable ZK4000-8200-2xxx to EtherCAT Terminal EL7062

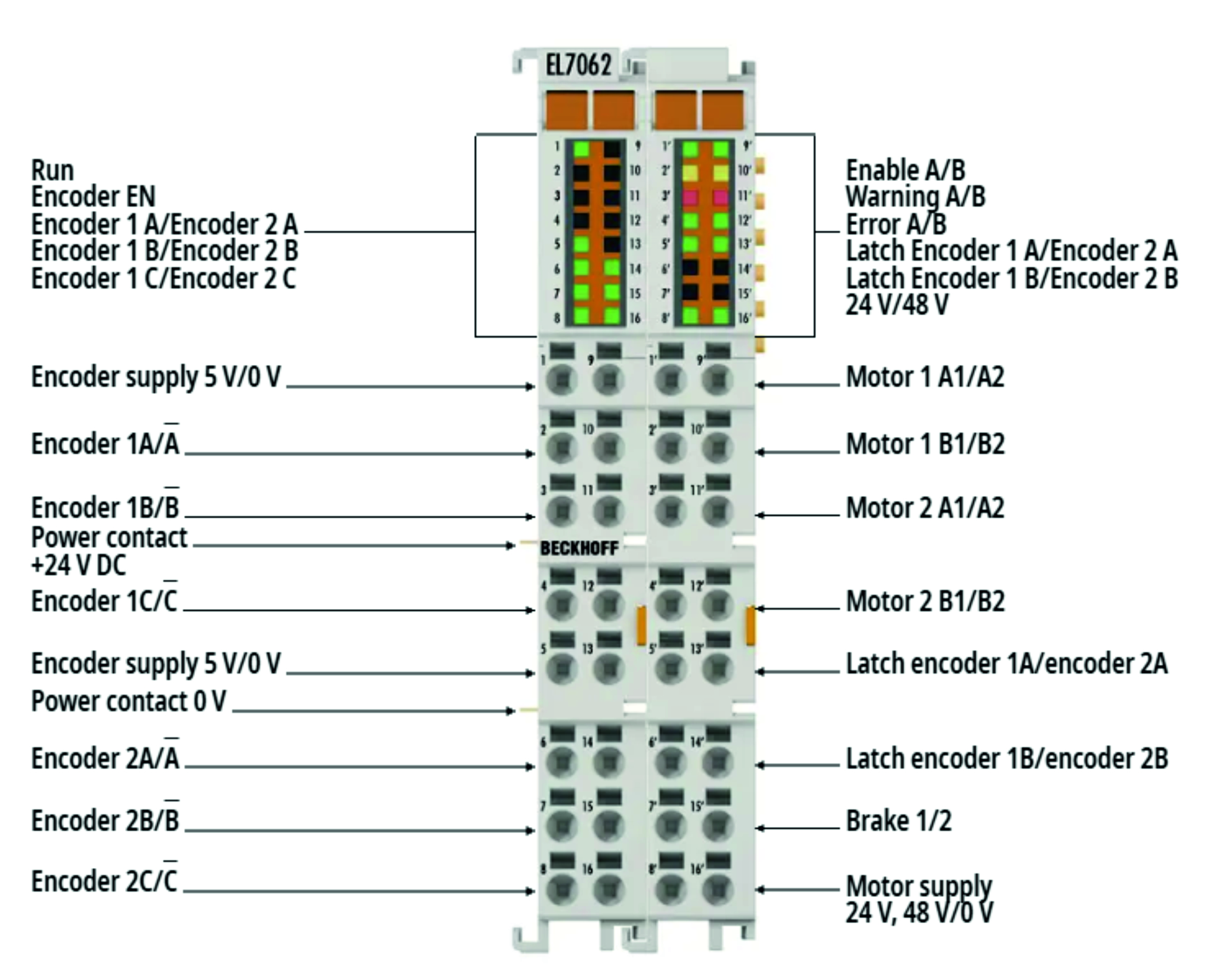

Pin assignment EtherCAT Terminal EL7062

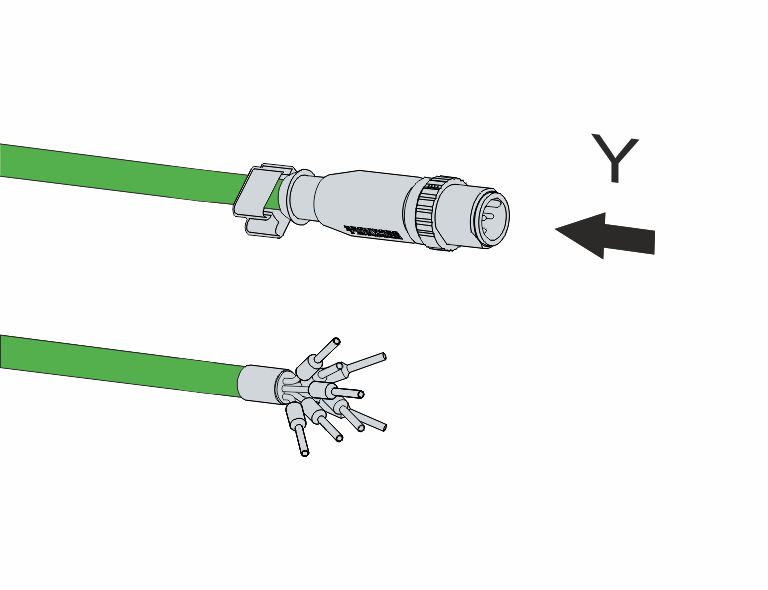

Encoder cable

• Order key: ZK4000-8200-2xxx
• Preassembled at both ends and shielded: 4 x 2 x 0.25 mm²
