Parameterization with KS2000

Connect the configuration interface of your Fieldbus Coupler with the serial interface of your PC via the configuration cable and start the KS2000 Configuration Software.

Parameterization with KS2000 1:

Click on the Login button. The configuration software will now load the information for the connected fieldbus station.
In the example shown, this is

  • a BK9000 Bus Coupler for Ethernet
  • a KL1002 input terminal
  • a KM6551-0000 data exchange terminal
  • a KL9010 Bus End Terminal

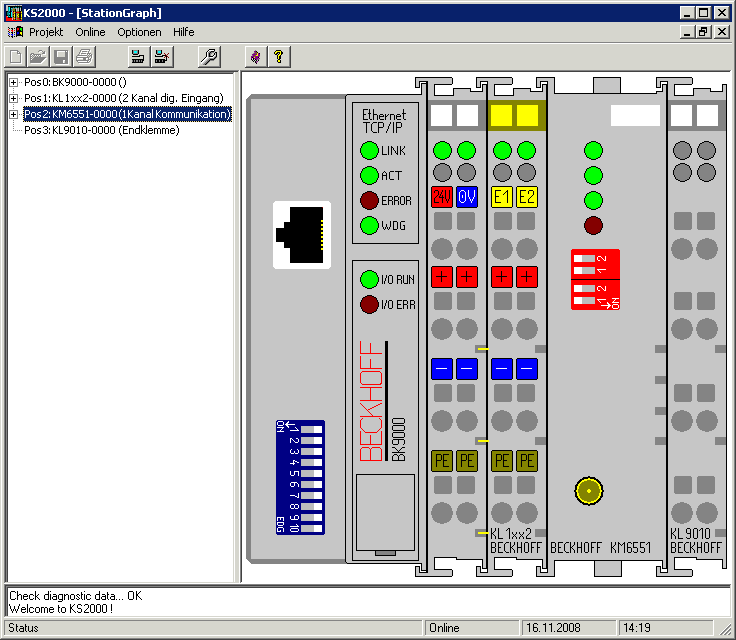

Parameterization with KS2000 2:
Display of the fieldbus station in KS2000

The left-hand KS2000 window displays the terminals of the fieldbus station in a tree structure.
The right-hand KS2000 window contains a graphic display of the fieldbus station terminals.

In the tree structure of the left-hand window, click on the plus-sign next to the module whose parameters you wish to change (pos. 2 in the example).

Parameterization with KS2000 3:
KS2000 branch for channel 1 of the KM6551

The tree branches Register, Settings and ProcData are displayed for the KM6551-0000:

  • Register allows direct access to the registers of the KM6551-0000.
  • Under settings you will find dialog masks for parameterizing the KM6551-0000.
  • Process data shows the process data of the KM6551-0000.
