Procedure within TwinCAT with xti files

Each IO device can be exported/saved individually:

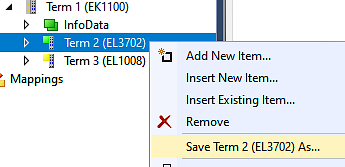

Procedure within TwinCAT with xti files 1:

The xti file can be stored:

Procedure within TwinCAT with xti files 2:

and imported again in another TwinCAT system via "Insert Existing item":

Procedure within TwinCAT with xti files 3:
