SlotGroup 2 | 4 digital inputs (24 V DC)
Four digital inputs are available in SlotGroup 2. These are displayed in the "Slots" tab (see fig.).

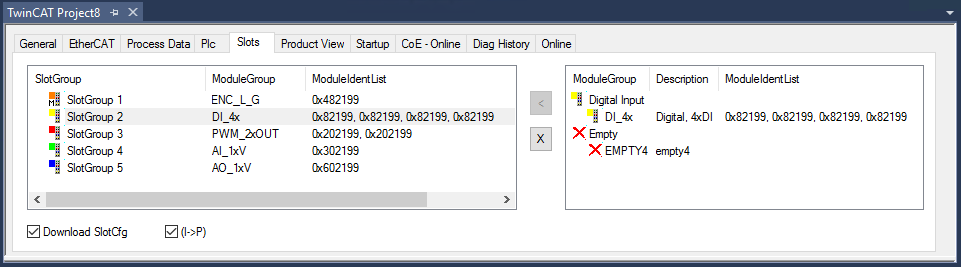

Fig.166: EL8601-8411 – SlotGroup 2The description of the function can be found in the corresponding ModuleGroup.
ModuleGroup | Description | Description | Further Information | |
|---|---|---|---|---|
Digital Input | DI_4x | Digital, 4xDI (0x82199) | 4 digital inputs (24 V DC) | Connection terminal points 9 - 12 LEDs 10 - 13 Technical properties Function and parameterization SlotGroup 2 CoE object description SlotGroup 2 |
Empty | Empty4 | empty4 | - | |
