Rotate Image

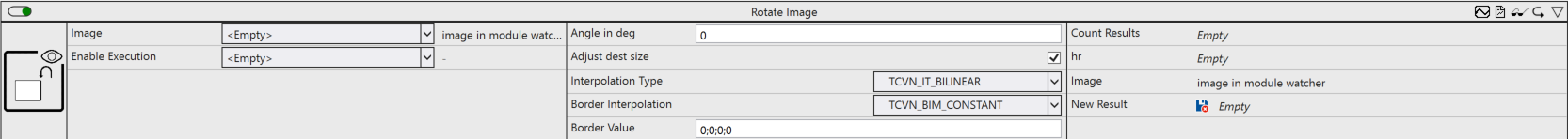

Rotate Image 1:

Rotates an image clockwise by the specified angle.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Angle in deg: (Optional) Angle of rotation in degrees (positive: counterclockwise, negative: clockwise).
  • Adjust dest size: (Optional) If TRUE, the size of the output image is adjusted so that the fully rotated input image is included. Otherwise, the output image is set to the size of the input image.
  • Interpolation Type: (Optional) Interpolation method.
  • Border Interpolation: (Optional) Interpolation method at the border (ISOLATED is not supported).
  • Border Value: (Optional) Border value if CONSTANT is used.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
