Overview

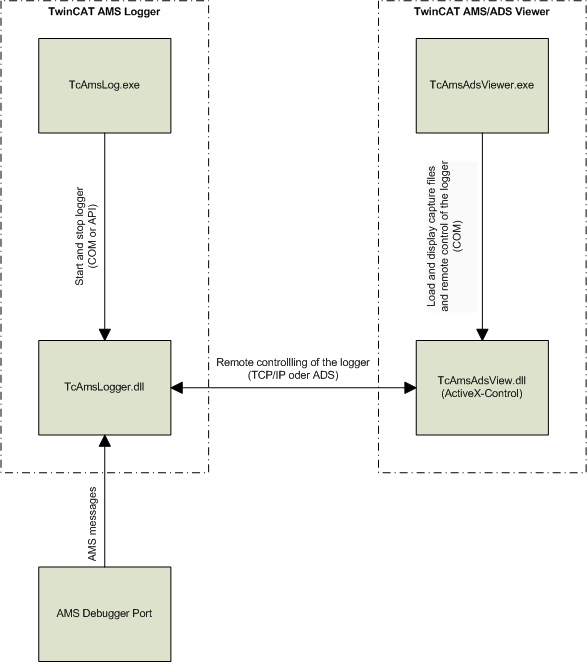

The TwinCAT ADS Monitor is divided into the two applications AMS logger (TcAmsLog.exe) and AMS viewer (TcAmsAdsViewer.exe). The logger is responsible for recording the AMS commands and the AMS/ADS viewer for displaying this data. Furthermore, the logger can be controlled remotely by the viewer via TCP/IP. The following diagram shows the relationship between the individual components.
