Enable additional diagnostic functions

The following products allow advanced diagnostics of their digital outputs:

The following diagnostic functions are disabled in the factory setting of these products:

You can enable these diagnostic functions for each digital output channel individually. Example for channel 1:

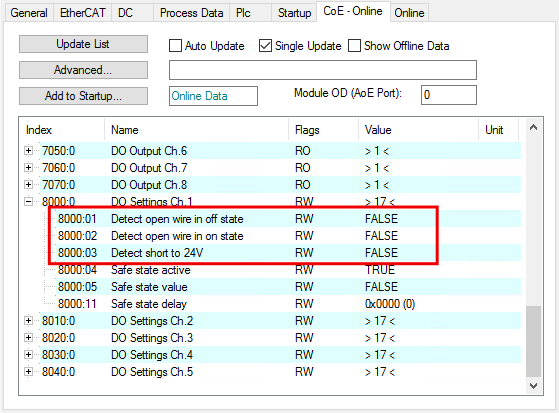

Enable additional diagnostic functions 1:

Function	CoE parameters to enable
Wire break detection with output switched off	80n00:01	Detect open wire in off state
Wire break detection with output switched on	80n00:02	Detect open wire in on state
Detection of short circuits after 24 V	80n00:03	Detect short to 24V
