Instructions for ESD protection

Notice

Destruction of the devices by electrostatic discharge possible!

The devices contain components at risk from electrostatic discharge caused by improper handling.

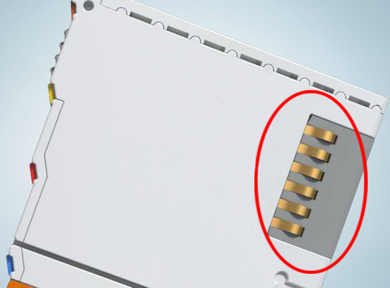

• When handling the components, ensure that there is no electrostatic discharge; also avoid touching the spring contacts directly (see illustration).
• Contact with highly insulating materials (synthetic fibers, plastic films, etc.) should be avoided when handling components at the same time.
• When handling the components, ensure that the environment (workplace, packaging and persons) is properly earthed.
• Each bus station must be terminated on the right-hand side with the EL9011 or EL9012 end cap to ensure the degree of protection and ESD protection.
