PS9401-2440-0000 | Redundancy Module 12 - 28 V DC, 40 A · 0 次阅读

Application examples

1+1 redundancy up to 20 A

1+1 redundancy up to 20 A requires two 20 A power supply units and one 40 A redundancy module.

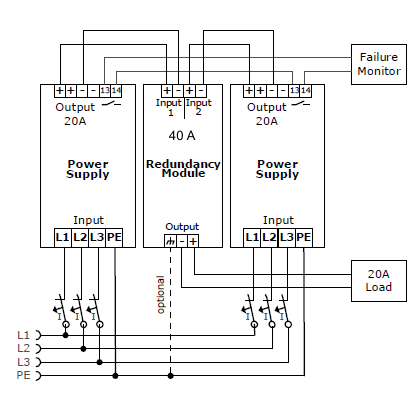

Application examples 1:
Circuit diagram, 1+1 redundancy, 20 A output current

N+1 redundancy, example with 60 A

Four 20 A power supply units and two 40 A redundancy modules are required for an N+1 redundancy up to 60 A.

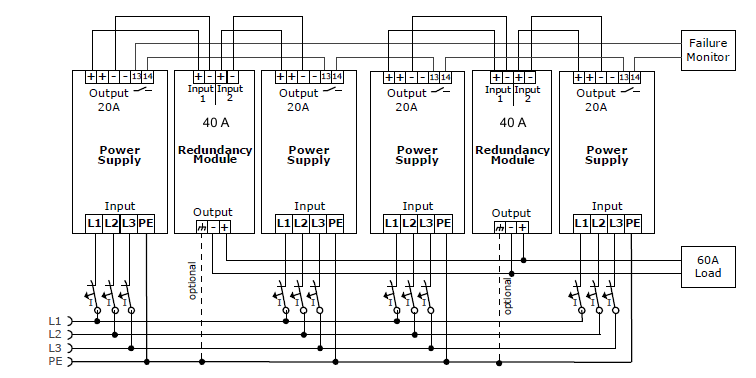

Application examples 2:
Circuit diagram, N+1 redundancy, 60 A output current
