Pin assignment M23-speedtec® (OCT)

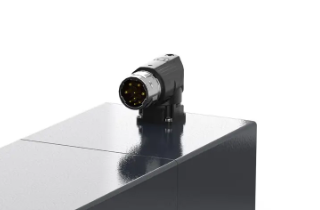

Pin assignment M23-speedtec® (OCT) 1:
rotatable angle box
M23-speedtec® (OCT)
Pin assignment M23-speedtec® (OCT) 2:
Mating face power box
M23-speedtec® (OCT)

Pin assignment of the power box for M23-speedtec® connector

Contact

Function

Core color/
Core identification

A

Motor phase U

black/1

B

Motor phase V

black/2

C

Motor phase W

black/3

D

PE

green-yellow

E

Temperature-/OCT-

blue

F

Shield

Shield

G

Brake+

black/5

H

Temperature+/OCT+

white

L

Brake-

black/6
