EP3752-0000 | 2 x 3-axis accelerometers · 0 次阅读

Measuring range

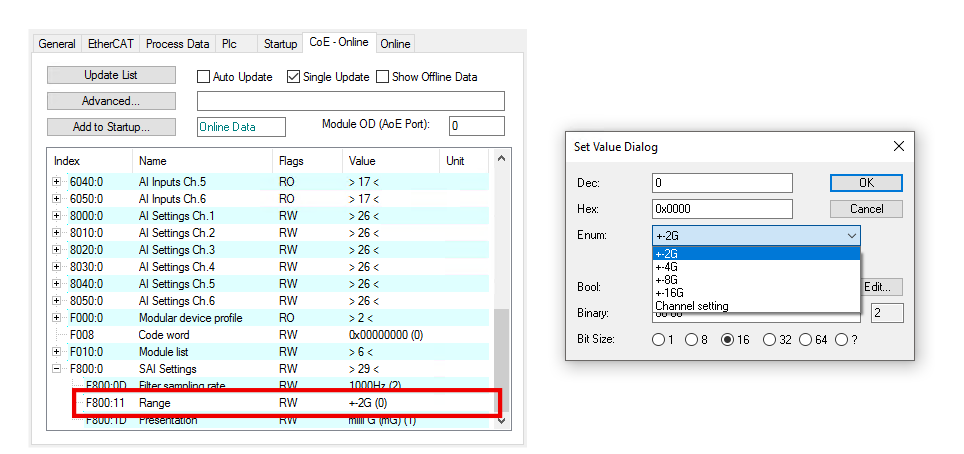

You can select the measuring range in the CoE parameter 0xF800:11 "Range".

Measuring range 1:

If you select the option "Channel setting", you can set the measuring range for each sensor individually:

  • Measuring range for sensor 1: Index 0x8000:19 "Range"
  • Measuring range for sensor 2: Index 0x8030:19 "Range"

This setting applies to all axes of the respective sensor. An individual setting for individual axes is not possible.
