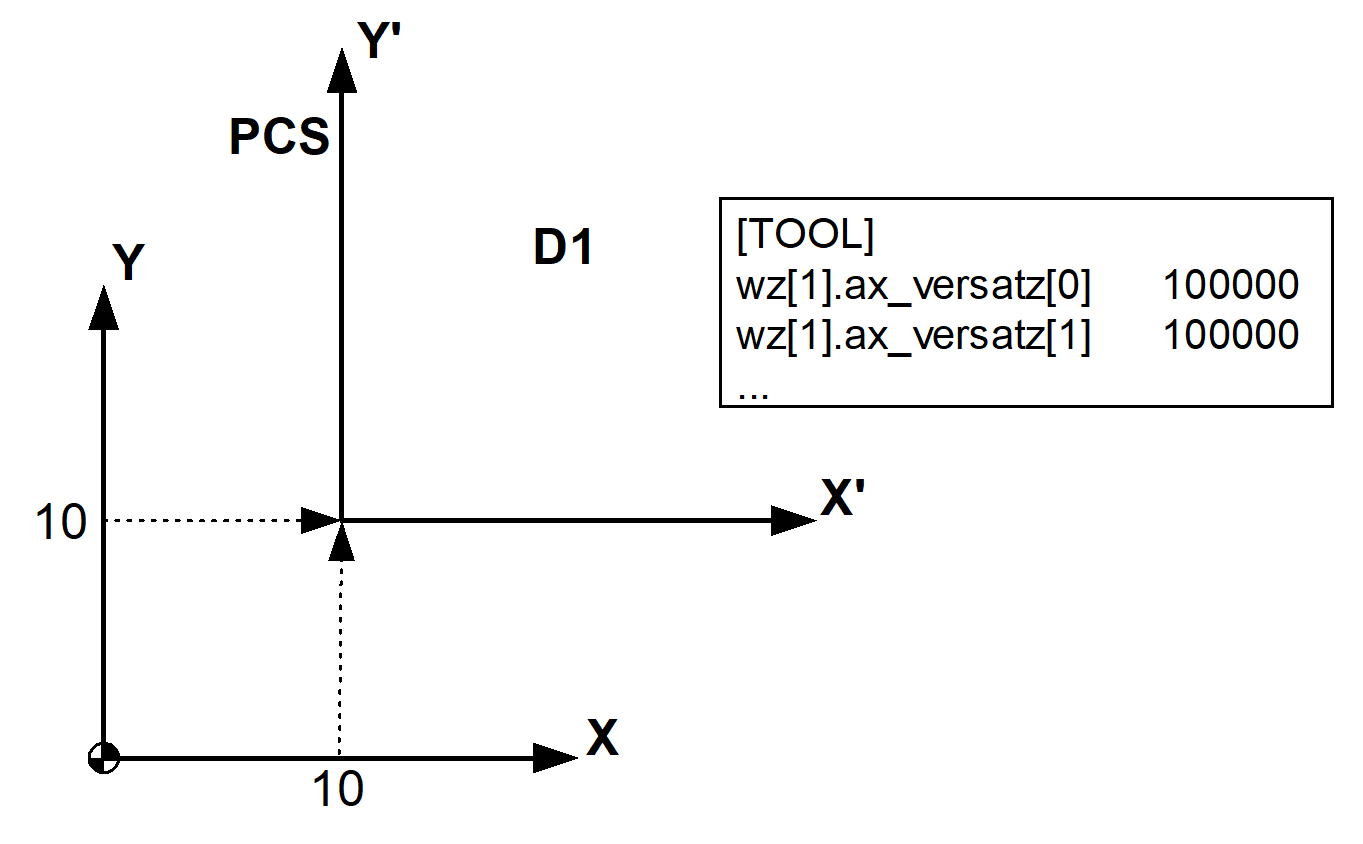

Tool offset

Select: D <Nummer des Korrekturdatensatzes>

The D word selects the corresponding tool geometry compensation data from the tool list [TOOL].

Effectiveness

• Active until deselected or up to program end. In order to use kinematic transformations, special tool offset parameters may have to be assigned (wz[i].kinematic.param[j]).
• Depending on the parameterisation, a new offset becomes active either directly when the D word is selected or until the next absolute programmed position (G90) from (P-CHAN-00100).
• Depending on P-TOOL-00010 tool offsets act in the axis directions of the machining coordinate system or the machine coordinate system.

Deselect: D0
