EL252x | Pulse Train Output Terminal, Incremental Encoder Simulation Terminal (Pulse Train) · 0 次阅读

EL2522 - when using older FW or older TwinCAT versions with "Continuous Position" mode

the following must be observed if necessary:

a)

EL2522 - when using older FW or older TwinCAT versions with "Continuous Position" mode 1:

b)

EL2522 - when using older FW or older TwinCAT versions with "Continuous Position" mode 2:
Linking Axis/Drive/nOutData5 to the Target Counter Value of the terminal

a)

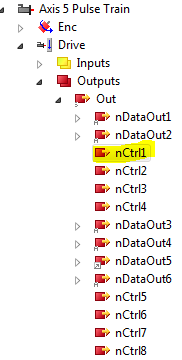

EL2522 - when using older FW or older TwinCAT versions with "Continuous Position" mode 3:

b)

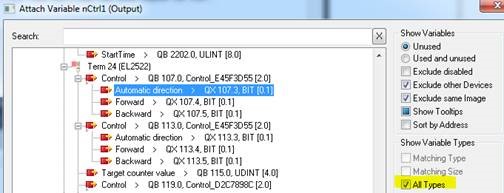

EL2522 - when using older FW or older TwinCAT versions with "Continuous Position" mode 4:

c)

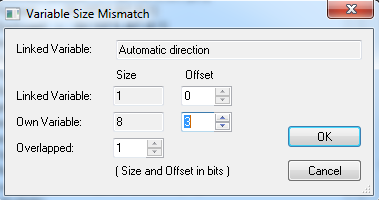

EL2522 - when using older FW or older TwinCAT versions with "Continuous Position" mode 5:
Link Axis/Drive/nCtrl1 to AutomaticDirection of the terminal
