KL/KS2732 - Introduction

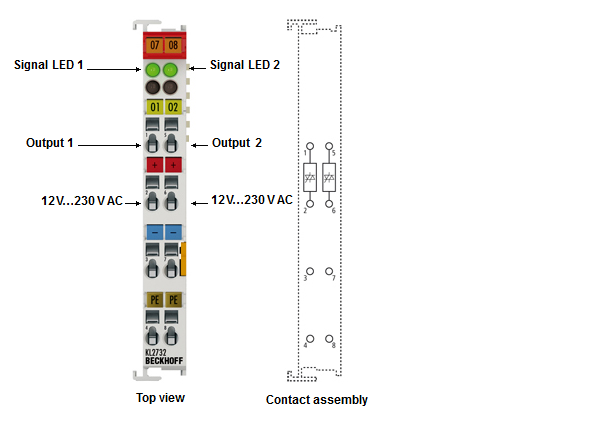

KL/KS2732 - Introduction 1:
KL2732 - 2-channel triac output terminal, 12 ... 230 VAC, channel locking, without power contacts

The KL/KS2732 output terminal uses a power switch to control mains voltage from 12 to 230 VAC. The switching element is a triac. As a semiconductor switch, it is not subject to wear. The terminal has two mutually locked outputs and operates with two potential-free switches.

Application

The triac output terminals are particularly suitable for mechanical reverse motors. They are only suitable to a limited extent for connecting LEDs. The correct functioning of the terminals is not guaranteed in this case.
