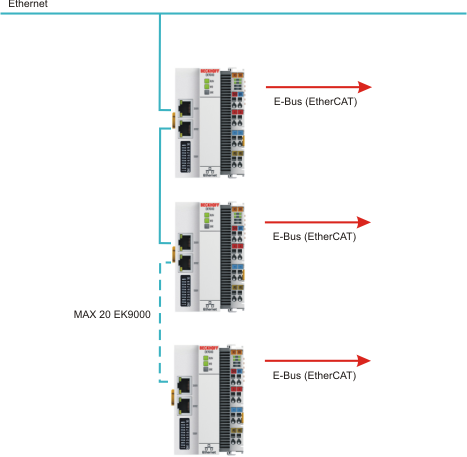

Ethernet topology
EK9000
The construction of the EK9000 can take place in a line, with adherence to the following points:
- Maximum 20 Bus Couplers one behind the other
- No switches should be used in the line
