Half bridge - Connection

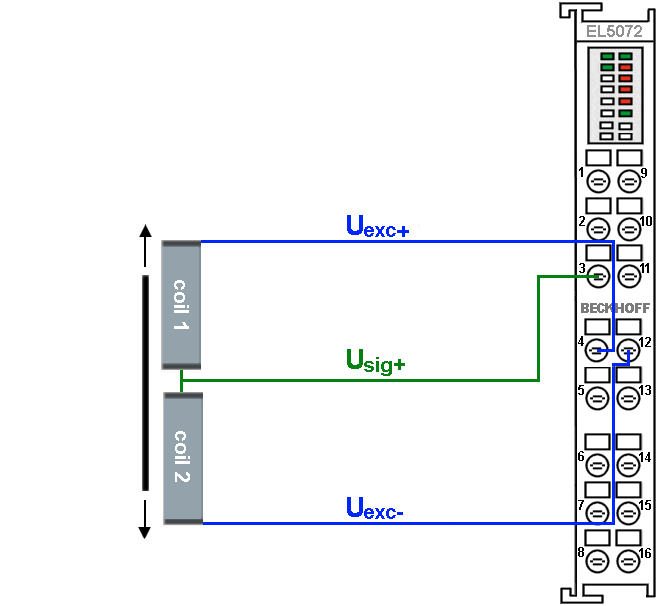

3-wire half bridge connection

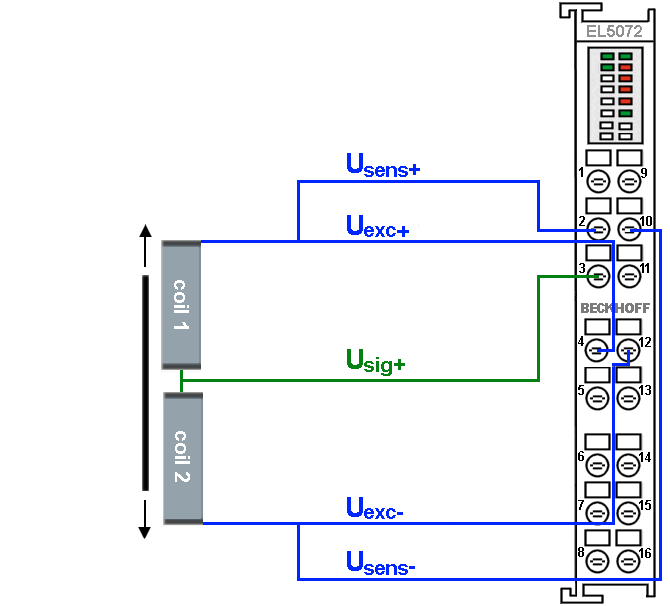

Fig.35: Connection for 3-wire inductive half bridge5-wire half bridge connection
Fig.36: Connection for 5-wire inductive half bridgeEL5072 | 2-channel displacement sensor interface, inductive, LVDT, RVDT, half bridge · 0 次阅读
Fig.35: Connection for 3-wire inductive half bridgeFig.36: Connection for 5-wire inductive half bridge
