Process image - EP1008-000x

Channel 1 to Channel 8

You will find the 8 digital inputs to the module (here using the EP1008-0001 as an example) under Channel 1 to Channel 8.

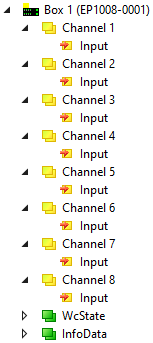

Fig.4: EP1008-00xx, process image
