Dimensions

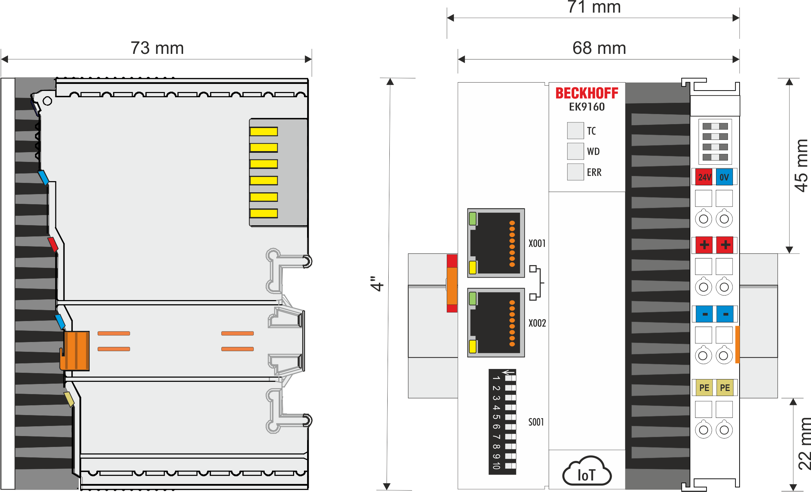

The following illustrations show the dimensions of the bus couplers.
Drawings in DWF and STEP format can be found in the Download area of the Beckhoff website.
