Process data

In the PS2001-xxxx-1001 power supplies, the process data is divided into the categories:

• "PSU Inputs"
  The process data Warning, Error, DC-OK, Output voltage (32-bit) and Output current (32-bit) are summarized under "PSU Inputs".
• "PSU Outputs"
  The "PSU Outputs" contain the values Disable output.
• "PSU Synchron info data"
  In addition, certain additional diagnostic information can be transmitted in the "PSU Synchron info data" category via the freely configurable information data info data 1 and info data 2.

There are three process data settings "Predefined PDO Assignments" to select from (see chapter "Switching the process data"):

• "Standard":
  Only the "PSU Inputs" and "PSU Inputs Device" are transmitted.
• "Standard + Synchron info data":
  "PSU Inputs", "PSU Inputs Device" and "PSU Synchron info data" are transmitted.
• Standard + Outputs
  "PSU Inputs", "PSU Inputs Device" and "PSU Outputs" are transmitted.

Interpretation of Value & Status variable

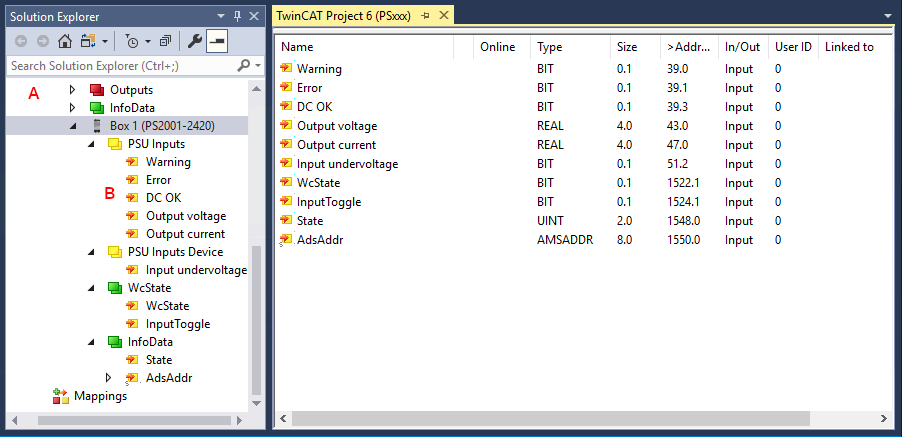

Fig.134: Default process data using the PS2001-2420-1001 as an example

The plain text display of the bit meanings of the status word is particularly helpful for commissioning, but also for linking with the PLC program.
By right-clicking on the status variable in the configuration tree (A), the structure can be opened for linking (B).

• Switching process data sets
