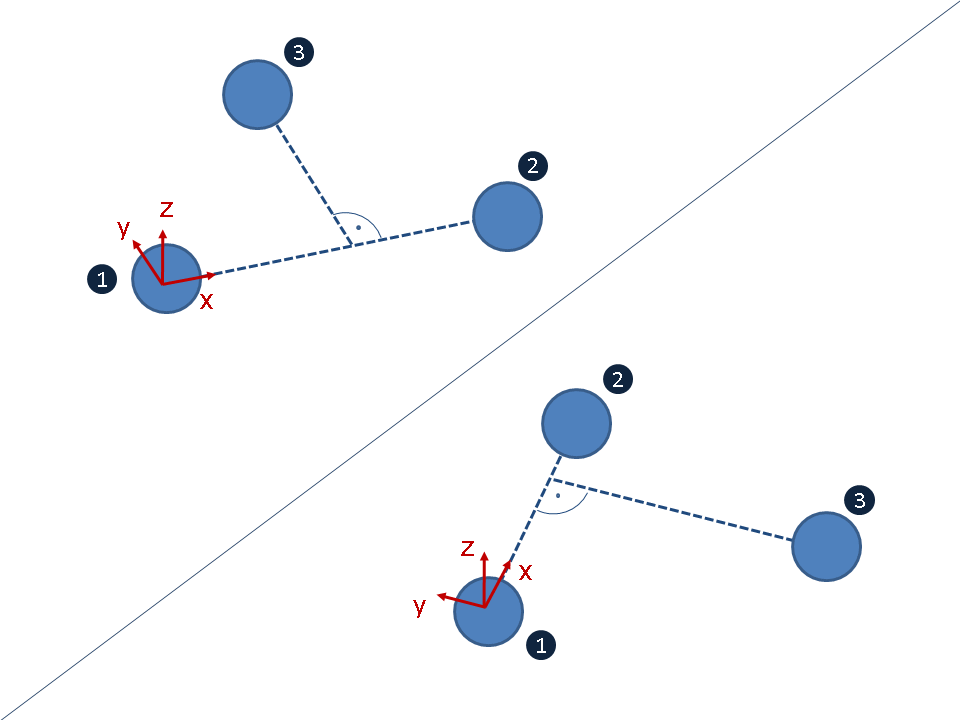

Definition of the plane by reference points

The rotation plane can be defined by 3 points (@P6@P14) in the current tool CS. The target plane is defined when these parameters are transferred. The resulting machining coordinate system is then calculated so that all 3 points lie on the XY plane. The following also applies:

• The X axis of the resulting MCS is parallel to the vector of the 1st reference point in relation to the 2nd reference point
• The Z axis lie perpendicular to the XY plane and is positioned so that its value in Z is positive
• The Y axis is defined so that it forms a right-hand system to the X and Z axes
