1. Linear servo motors AL3800 (ironless) - Version 3.6
  2. Electrical installation
  3. Connection of motors with preassembled cables
  4. AX5000 connection diagram for AL38xx and Sin/Cos encoder with zero pulse

AX5000 connection diagram for AL38xx and Sin/Cos encoder with zero pulse

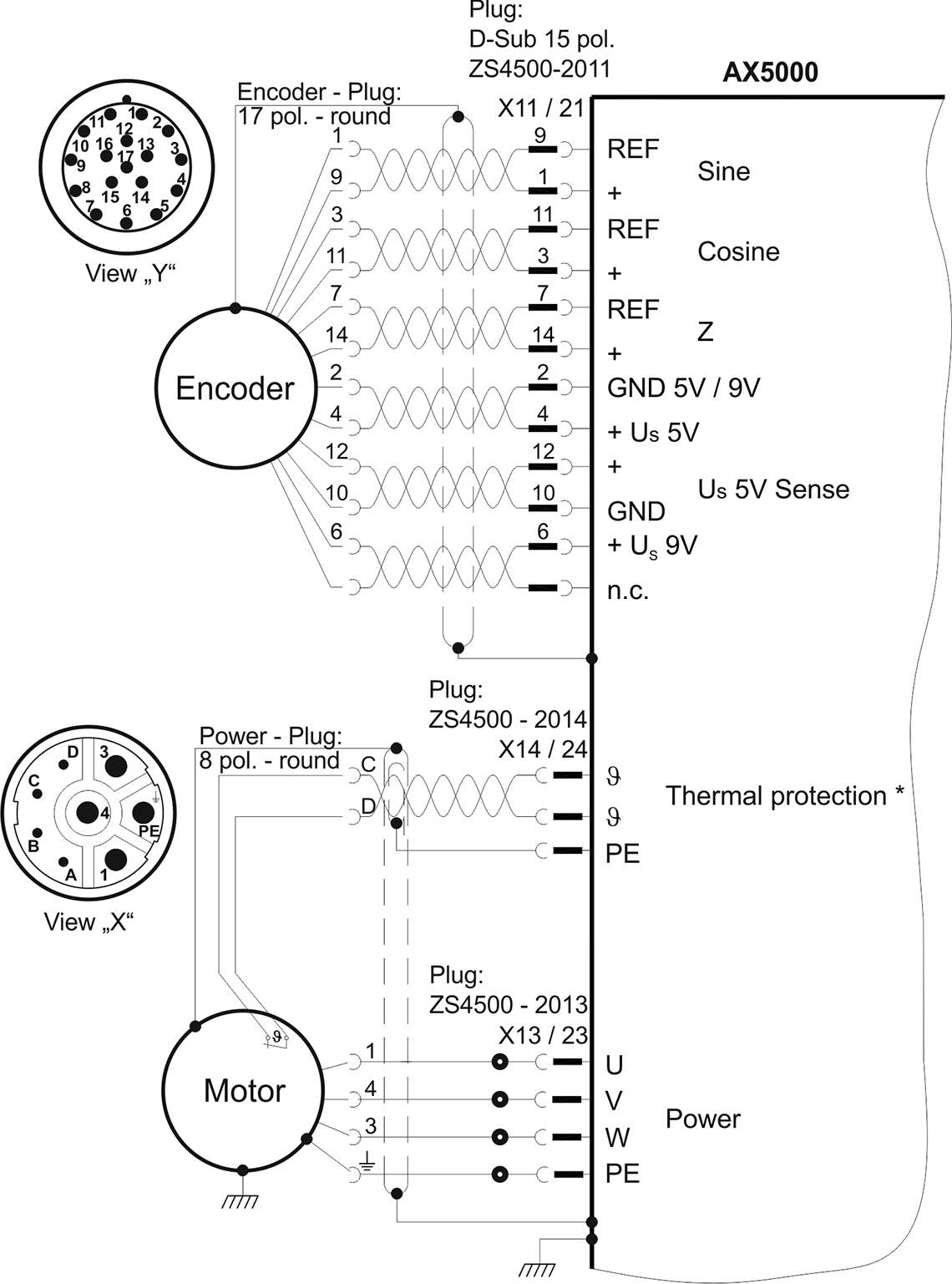

AX5000 connection diagram for AL38xx and Sin/Cos encoder with zero pulse 1:


* If no ConnectorBox is used, the ZK4540-0020-xxxx thermal protection contact cable is additionally required. This is to be connected to X14 / 24.

AX5000 connection diagram for AL38xx and Sin/Cos encoder with zero pulse 2:
AX5000 connection diagram for AL38xx and Sin/Cos encoder with zero pulse 3:
