PS1011-2410-0000 | Power supply 24 V DC, 10 A, 1-phase, AC 100-240 V · 0 次阅读

Operation on two phases

The power supply can also be used on two phases of a three-phase system. Such a phase-to-phase connection is permissible as long as the supply voltage is below 240V+10%.

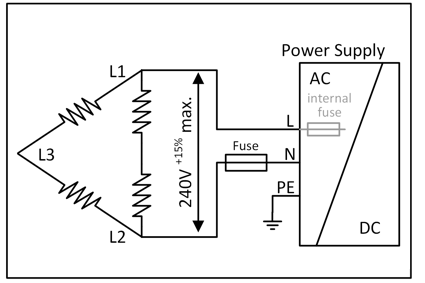

Operation on two phases 1:
Operation on two phases

Make sure that the conductor connected to the N terminal is appropriately fused.
