Structure
The following figure shows an example of the structure of the device for all device versions.
The control panel connection interfaces vary, depending on the product version. The CP3921-1512-00x0 device also has a side-mounted LED status bar. The CP3921-1513-00x0 does not have an LED status bar. Otherwise, there are no other differences in the external design of the device.

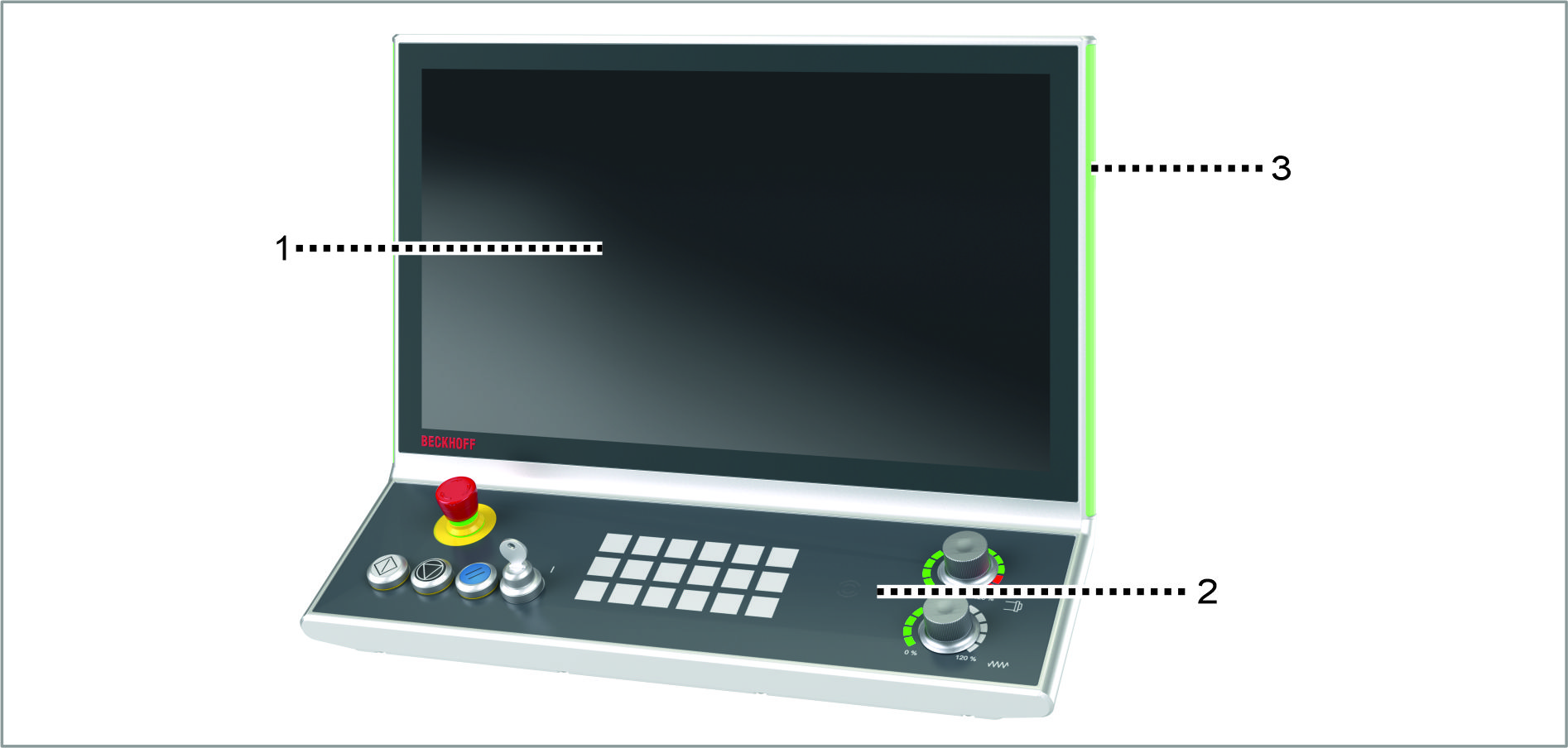

Fig.4: StructureNo. | Component | Description |
|---|---|---|
1 | Display and touch screen glass | Operating the control panel |
2 | Push-button extension | Control of central machine or system functions |
3 | Side LED status bar (only for CP3921-1512) | Status of the machine; exact meaning freely selectable |
