Process data for KL3361

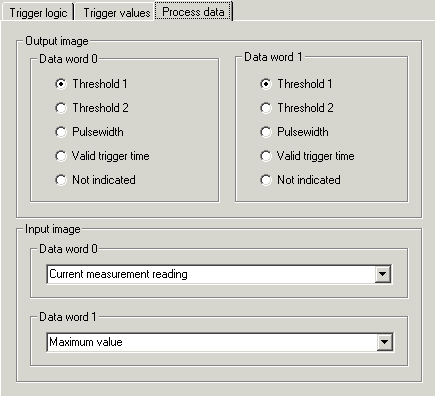

In the Process data tab, you can specify which data are displayed in the process image of the KL3361 oscilloscope terminal.

• Data word 0
  For trigger unit 1, select which trigger parameter you wish to specify with data word 0 (DataOUT0) of the KL3361 (see Output process data in detail).

• Data word 1
  For trigger unit 2, select which trigger parameter you wish to specify with data word 1 (DataOUT1) of the KL3361 (see Output process data in detail).

• Data word 0
  Here you can specify which input value is transferred with data word 0 (DataIN0) from the KL3361 to the control (see Input process data in detail).

• Data word 1
  Here you can specify which input value is transferred with data word 1 (DataIN1) from the KL3361 to the control (see Input process data in detail).
