Sync Manager (SM)

The scope of process data offered can be modified via the "Process Data" tab (see Fig. Process Data tab SM3, EL5112 (default) below).

A detailed description for setting the process data can be found in chapter EtherCAT subscriber configuration.

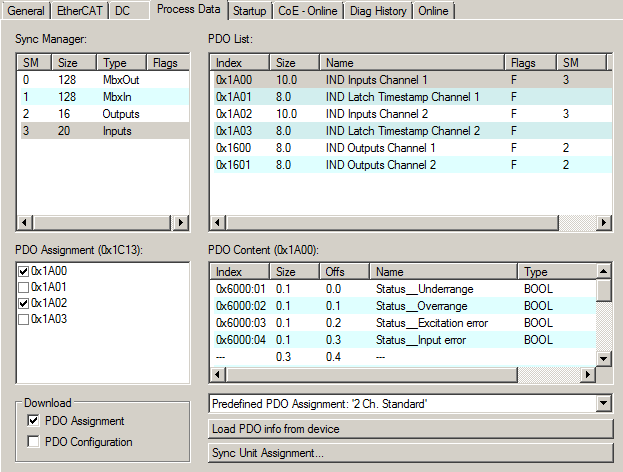

Fig.109: EL5072 - Process data tab SM3 (default)
