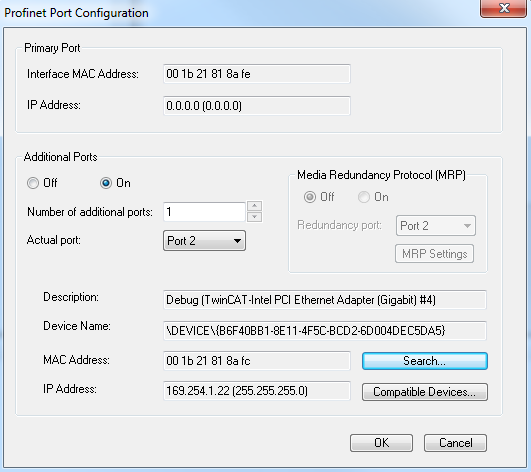

Port settings

This feature is only available for the real-time Ethernet protocol (no EL663x or CCAT). With this a second PROFINET port and an intelligent switch can thus be realized with a second network card (Intel chipset). It is intended to repeat this feature x times; however, it is presently limited to one additional port.

For support, the MRP (Media Redundancy Protocol) function can also be activated via this menu; various settings can be made for this.
