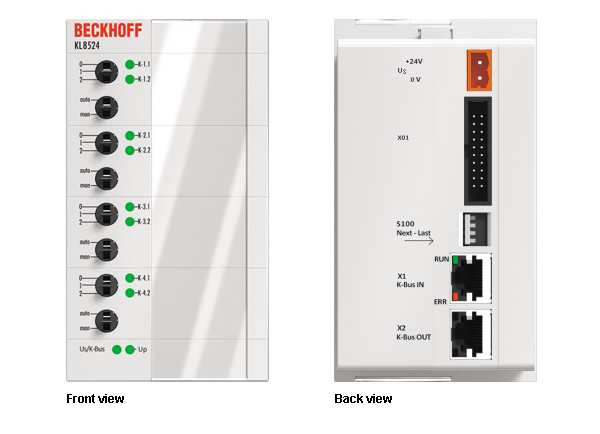

KL8524

4 x 2-channel digital output module

The KL8524 is a 4 x 2-channel digital output module, equipped with two switches. The first is for switching between manual and automatic operation, while the second is used to set a 2-stage output. It is possible to specify when and how the two outputs are switched. The status is indicated by a bicolor LED in green and yellow. The switching positions are readable via the PLC.
