- AX2090-NF50 - Version 1.3
- Installing the mains filter
- Circuit diagram

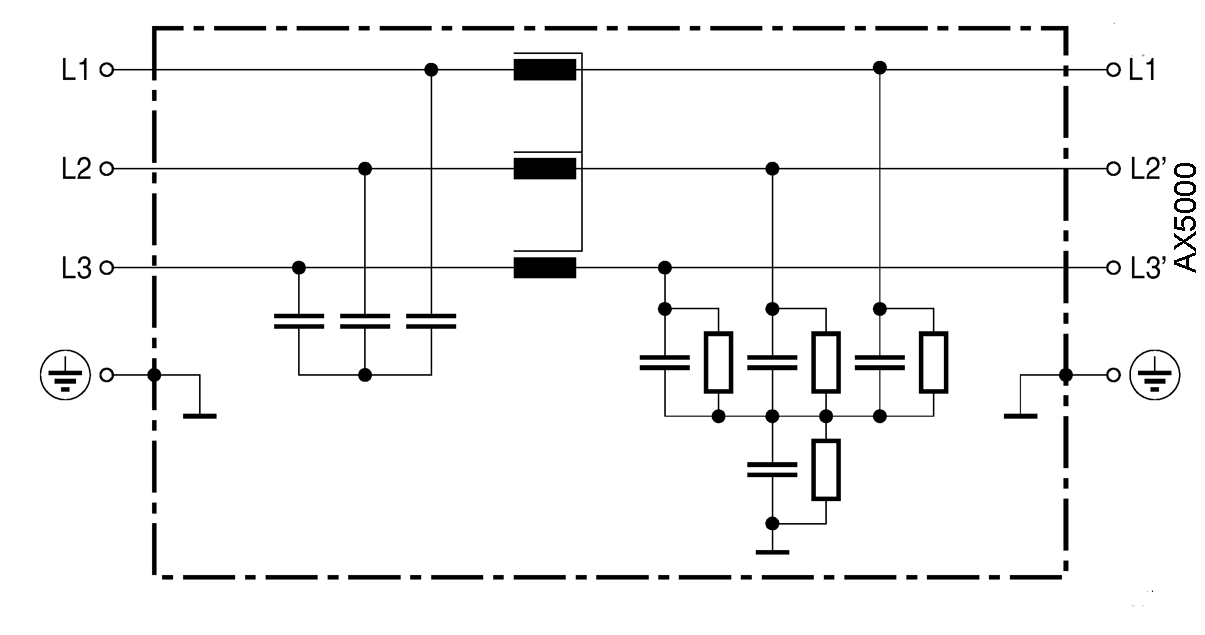

Circuit diagram
Connection cables
The length of the connecting cable from the mains filter to the AX5000 must not exceed 0.4 m. Use exclusively shielded connecting cables.
