Electrical isolation of the channels

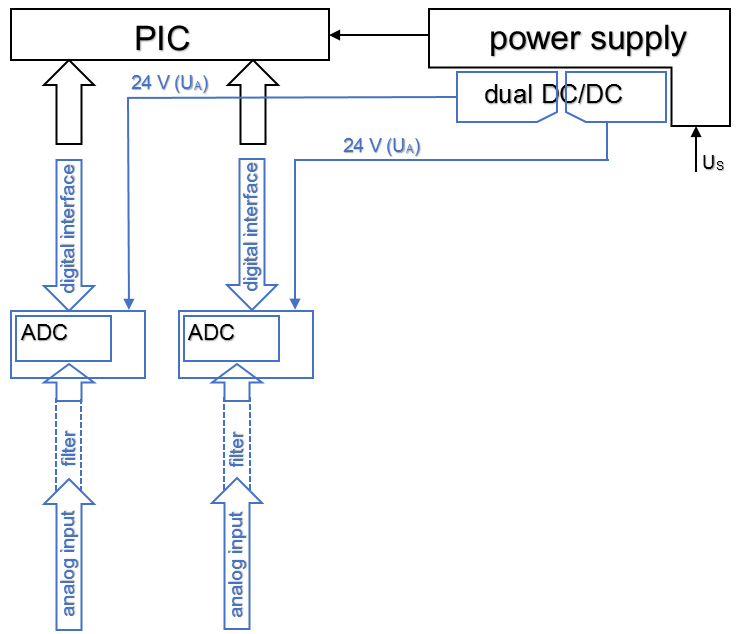

The following block diagram shows the principle of electrical isolation of the two channels.
 | Electrical isolation of GND The ground potentials of channel 1 (GNDA) and channel 2 (GNDB) are electrically isolated from each other. |
