Operation on two phases

The power supply can also be used on two phases of a three-phase system. Such a phase-to-phase connection is permissible as long as the supply voltage is below 240 V+10%.

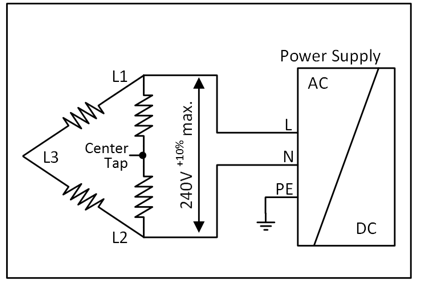

Fig.25: Operation on two phases

Make sure that the connection cable connected to the N terminal is fused appropriately.
