Example program 1: Frequency measurement with inductive sensor

Example 1: Frequency measurement with inductive sensor

Example program 1: Frequency measurement with inductive sensor 1:Download: (Example program)

Content:

  • Version TwinCAT2: two files *.pro and *.tsm
  • Version TwinCAT3: one file *.tnzip

Data:

  • 1 ms cycle time
  • 1000x oversampling on both channels

Connection diagram:

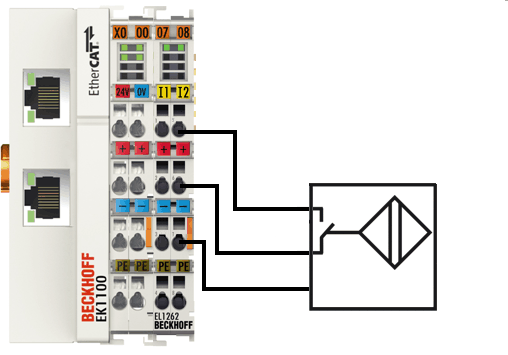

Example program 1: Frequency measurement with inductive sensor 2:Fig.216: Wiring for example program 1
