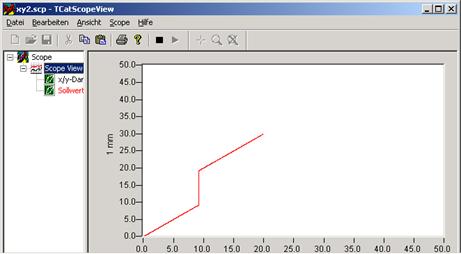

Examples

Configuration

Configuration of a further logical axis for the physical axis number 1

Actions

kopf.achs_nr                11
kopf.clone_of                1
kopf.link_to                 1

• Start manual block“G01 G90 X20 Y20 F100”in the first channel
• Set”Suspend-Output”in the first channel
• Start manual block“G91 Y10”in the second channel and wait until end of its execution
• Delete“Suspend-Output”in the first channel
• Set“Suspend-Output”in the second channel

Configuration

Configuration of a further logical axis for the physical axis number 1

Actions

kopf.achs_nr                11
kopf.clone_of                1
kopf.link_to                 1

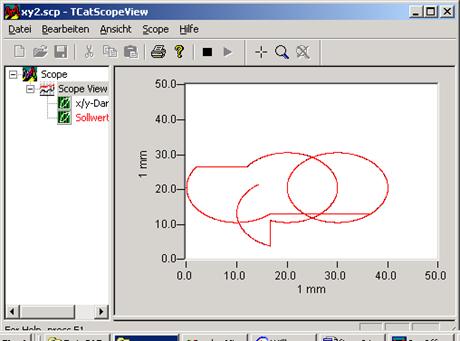

• Start automatic program in the first channel

$WHILE 1
  N10 G02 I10 F500
$ENDWHILE

• Set”Suspend-Output”in the first channel
• Set second channel into manual mode and move axes
• Delete“Suspend-Output”in the first channel
• Set“Suspend-Output”in the second channel
