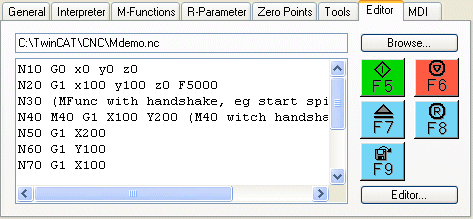

"Editor" tab

The editor is used to display and edit the NC programs.

Button explanations:

• Browse...
  Opens a dialog with which existing NC programs can be selected and displayed.
• F5
  Starts the currently loaded NC program.
  The NC program displayed in the editor does not necessarily have to be the currently loaded program.
• F6
  Stops the currently running NC program.
• F7
  Loads the NC program displayed in the editor.
• F8
  Executes a group reset.
• F9
  Saves the NC program currently displayed in the editor under the same name.
• Editor...
  Opens a larger window in which the NC program is displayed.
