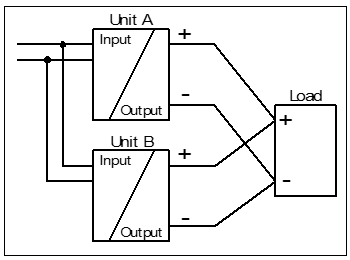

Parallel use to increase output power

Devices of the same type PS9731-2410-0000 can be connected in parallel to increase the output power.

The output voltage of all power supplies shall be adjusted to the same value (±100 mV) in “Single Use” mode with the same load conditions on all units, or the units can be left with the factory settings.
After the adjustments, set the device to “Parallel Use” mode, in order to achieve load sharing. The “Parallel use” mode regulates the output voltage in such a manner that the voltage at no load is approx. 4% higher than at nominal load. See also chapter “Output”.
If more than three devices are connected in parallel, a diode, a fuse or circuit breaker with a rating of 15 A or 16 A is required on each output. Alternatively, a diode or redundancy module can also be utilized.
The ambient temperature is not allowed to exceed +60 °C.

Restrictions

Maintain an installation distance of 15 mm (left/right) between two devices.
Avoid installing devices on top of each other.
Do not use devices connected in parallel in installation positions other than the standard installation position or under other conditions that require a reduction in the output current (e.g., installation altitude).
Pay attention that leakage current, EMI, inrush current will increase when using multiple devices.
