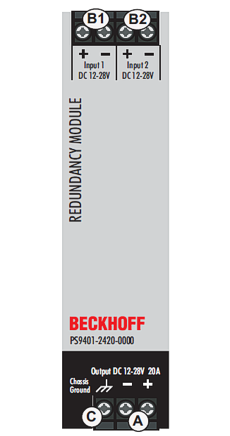

Front side and connecting elements
Output terminals (screw terminals)
Designation (A) | Description |
|---|---|
+ | Positive output |
- | Negative output |
Input terminals (screw terminals)
Designation (B1) | Description |
|---|---|
+ | Positive input channel 1 |
- | Negative input channel 1 |
Designation (B2) | Description |
|---|---|
+ | Positive input channel 2 |
- | Negative input channel 2 |
Chassis connection
Designation (C) | Description |
|---|---|
chassis ground | A connection to PE or ground improves the EMC/ESD behavior. |
