Firmware information for EL37xx/EL47xx
The firmware version of the EL series EL37xx and EL47xx is shown
- as a laser-engraved serial number on the housing
- in ESC register 0E00hex
To view the register proceed as follows (see Fig. Firmware version in EL37xx/EL47xx oversampling terminals):
- EL terminal in the EtherCAT system, install, set to OP state
- WorkingCounter = 0 check
- set "StartOffset" to "0e00" via "Advanced Settings" -> "Memory"
- use "Reload"/AutoReload to ensure that a current online value is displayed
- The firmware version is shown in 0E00hex

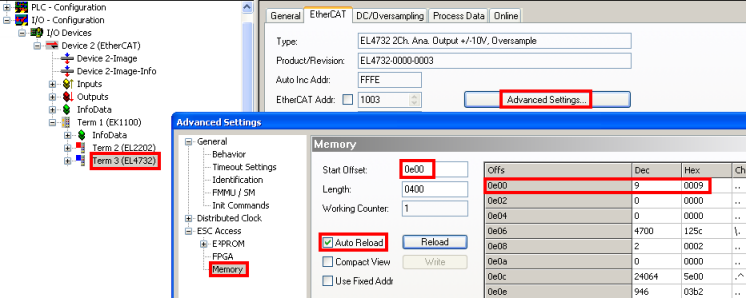

Fig.189: Firmware version in EL37xx/EL47xx oversampling terminals
