| FC510x - PCI Cards for CANopen |
Hardware overview
CAN Terminating Resistor

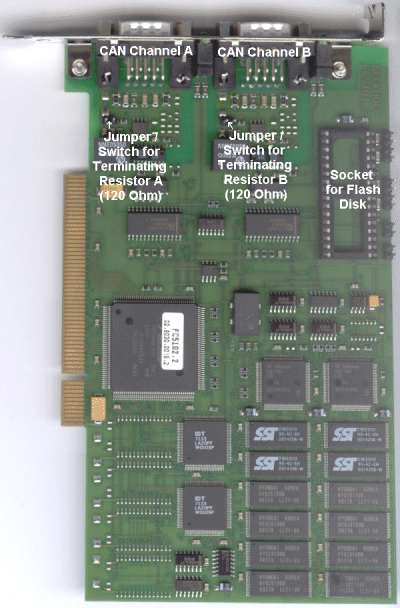

The card features CAN terminating resistors (120 ohm). These can be activated via a jumper (up to hardware version 3) or a slide switch (from hardware version 4) near the CAN connectors.
The Flash Disk socket is currently not in use.
FC5102
Pinout
The CAN bus line is connected via 9-pin Sub-D sockets with the following pinout.
Pin | Pinout |
|---|---|
2 | CAN low (CAN-) |
3 | CAN Ground (internally connected to pin 6) |
5 | Shield |
6 | CAN Ground (internally connected to pin 3) |
7 | CAN high (CAN+) |
The unlisted pins are not connected.
Note: an auxiliary voltage of up to 30 VDC may be connected to pin 9. Some CAN devices use this to supply the transceiver.

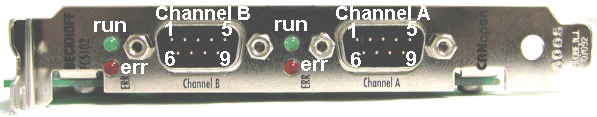

FC5102 panel
