KL6031/KS6031, KL6041/KS6041 | Serial Interface Terminals · 0 次阅读

RS232(485) interface parameters

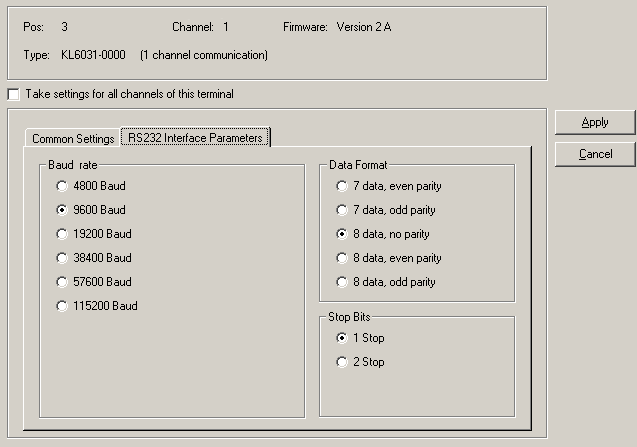

RS232(485) Interface Parameters tab for parameterizing the KL6031/KL6041.
(The example below shows the KL6031 tab).

Settings via KS2000

Baud rate (R32)

You can set the baud rate for the terminal here (default: 9600 bit/s).

Data format (R33)

Data format setting (default: 8 data bits, no parity).

Stop bits (R33.3)

Setting 1 or 2 stop bits via register R33, bit 3 (default: 1 stop bit).
