3. EJ3202 - Pinout

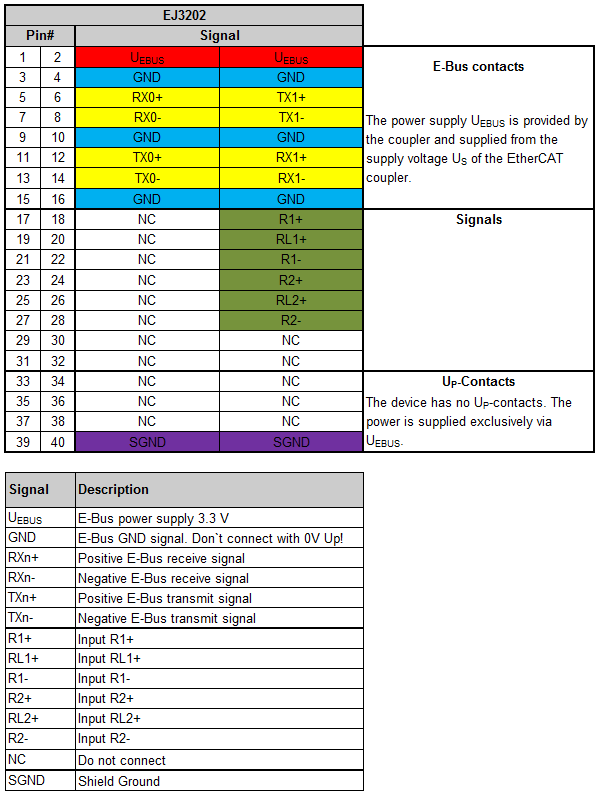

EJ3202 - Pinout

The PCB footprint can be downloaded from the Beckhoff homepage.

Note

Damage to devices possible!

• The pins named with “NC” must not be connected.

• Before installation and commissioning read the chapters Installation of EJ modules and Commissioning!
