Set ROI

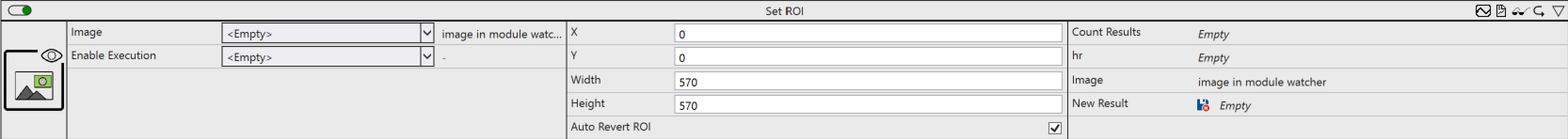

Set ROI 1:

Sets a region of interest (ROI) within an image. This can optionally be reset.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • X: X-coordinate of the top left corner.
  • Y: Y-coordinate of the top left corner.
  • Width: Width of the ROI.
  • Height: Height of the ROI.
  • Auto Revert ROI: Automatically resets the ROI at the end of the network.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
