EJ2564 | EtherCAT plug-in module, 4-Channel LED output, 5...48 V DC, 4 A, RGBW, common anode · 0 次阅读

Connection

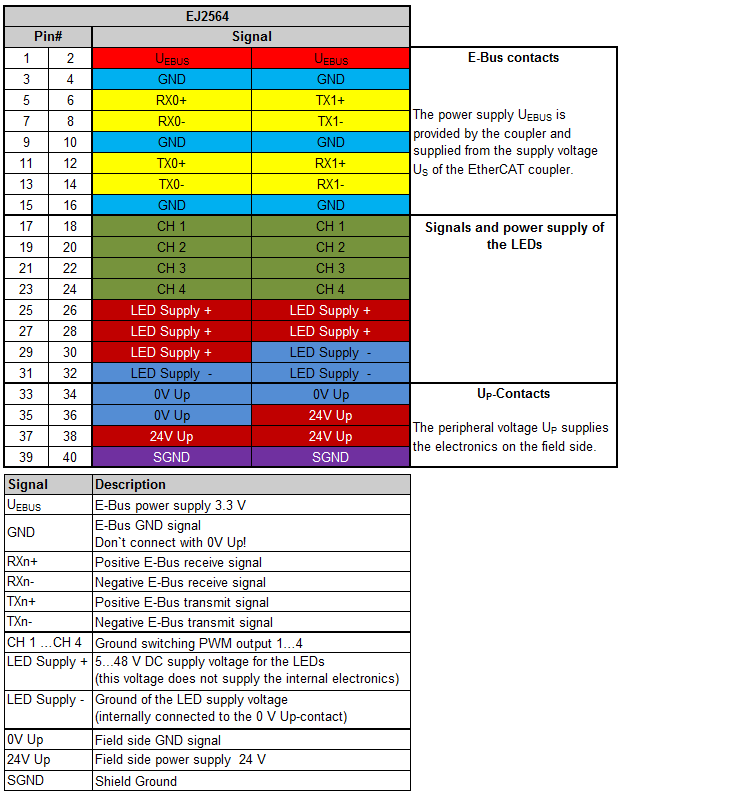

Connection 1:
EJ2564 - Connection

The PCB footprint can be downloaded from the Beckhoff homepage.

Note

Connection 2:

Damage to devices possible!

Before installation and commissioning read the chapters Installation of EJ modules and Commissioning!
