TE3500 | Analytics Workbench · 0 次阅读

Put Text

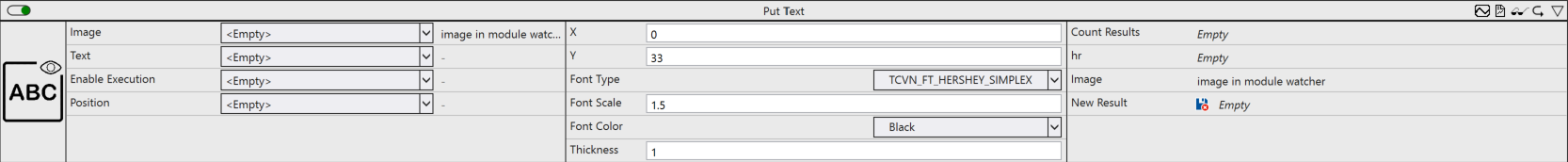

Put Text 1:

Write text in the picture.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • X: X-coordinate of the bottom left corner. If Position has an input, this value is used as an additional offset.
  • Y: Y-coordinate of the bottom left corner. If Position has an input, this value is used as an additional offset.
  • Font Type: Font type.
  • Font Size: Font size.
  • Font Color: Font color.
  • Thickness: Line width.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
