LED Displays
Ethernet
For each channel 1 LED show the current status.
LED display per channel
|
LED |
Display | |
|---|---|---|
|
Link |
off |
no connection |
|
on |
connection established (Link) | |
|
flashing |
data transmission active (Act) | |
Status

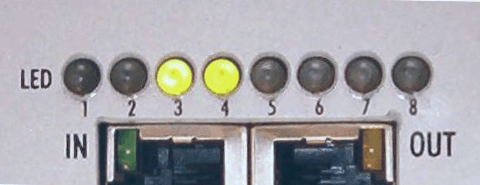

The Status LEDs 1 - 8 are intended for future diagnosis functions.
In standard operate mode the LED 3 and 4 glow permanently.
