Mounting and demounting

The CU2xx switches are mounted on the mounting surface with the aid of a 35 mm DIN rail  (mounting rail according to EN 60715).

Mounting

  • Fit the mounting rail to the planned assembly location.
  • Suspend the switch on the mounting rail with the spring on the lower side of its latching flange.
  • Press the switch upwards (1).
  • Press the upper side of the switch (2) against the assembly surface until it latches in the mounting rail.
  • Attach the cable.

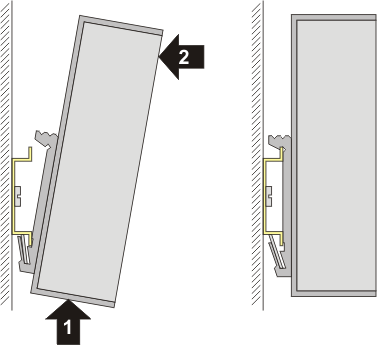

Mounting and demounting 1:Fig.17: Mounting

Removal

  • Remove all the cables.
  • Press the switch upwards (3).
  • Pull the other side of the switch (4) away from the assembly surface.

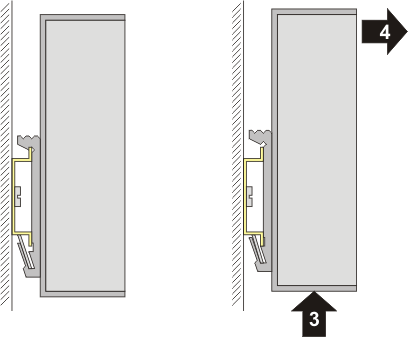

Mounting and demounting 2:Fig.18: Removal
